Figuring Out an E-Reader Function

This is a post on how I used Ghidra to figure out one of the E-Reader's API functions.

GBATEK has an incomplete listing of the functions in ERAPI. One that really stood out and seemed like something I'd find very useful for my next E-Reader game is RST0_DDh DecompressVPKorNonVPK. But that's all the help GBATEK offered, the function's ID, and a name for it. How many parameters does it take? What are the parameters? How to use it?

What is a VPK?

VPK0 is a compression routine that Hudson Soft created. They used it in some N64 games, and it was adopted for the E-Reader too. When scanning a card into the E-Reader, the data in that card is almost always compressed using VPK0. The E-Reader decompresses the data then executes it. The compression ratio can be quite nice, and so VPK0 really allows you to cram a lot more data into a card than you otherwise could.

I am making a puzzle game that involves loading the main game card, then once that is loaded, scanning in a "puzzle collection" card that contains many puzzles to solve. If I could compress the puzzle data using VPK, then decompress it, I'd be able to fit a lot more puzzles onto a single card. That seemed exactly what DecompressVPKorNonVPK is for ... but how to use it?

The ERAPI Function Table

Since ERAPI is a collection of functions, it makes sense that somewhere in the E-Reader ROM is a table of function pointers. And indeed, there is. nytpu's blog post pointed out where the table lives at address 0x85eebf8. Thanks nytpu!

ERAPI actually has two function tables, but we'll ignore that for this post.

Loading up Ghidra

Ghidra is a tool created by the NSA that is used to reverse engineer compiled binaries. You can load just about any binary into it and then start chipping away slowly at it, and hopefully figure out how some things work.

To load a GBA ROM into Ghidra, I used this GBA Ghidra loader. This loader knows for example that the ROM starts at 0x8000000 in the GBA's memory map, so it places it there in Ghidra, and does some other niceties for GBA ROMs.

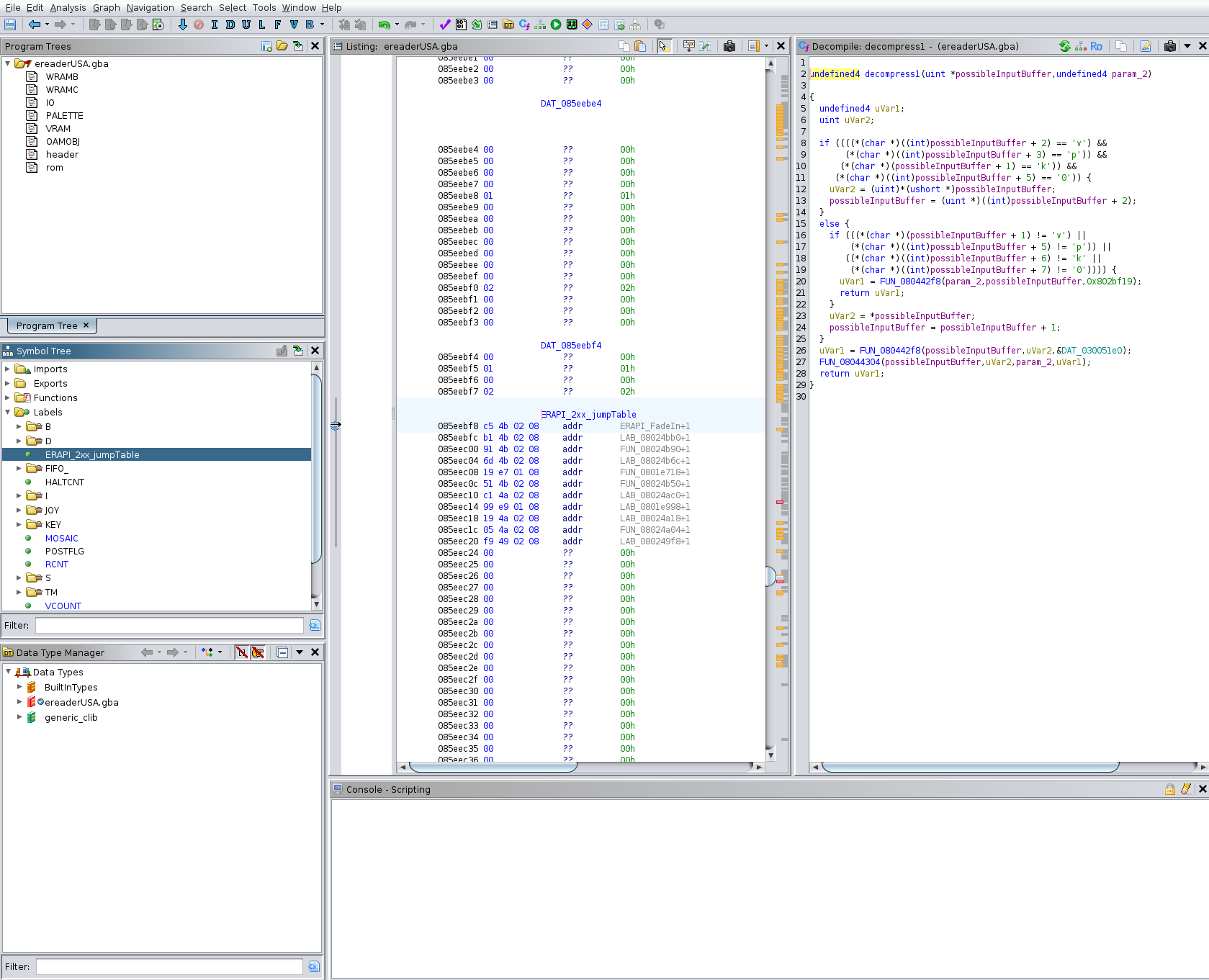

Once the E-Reader ROM is loaded, press 'g' for "go to", and head to 0x85eebf8, the start of the function table.

While you are here, right click on 0x85eebf8 and choose "Add Label". I called mine "ERAPI_2xx_jumpTable". That way you can get back to the table by just double clicking on its label on the left side in the symbol tree pane.

Finding the decompress function

DecompressVPKorNonVPK has an id of 0xDD. We know this from GBATEK, that is what RST0_DDh means. The RST0 part is related to the z80, since writing a z80 app is the main way to write an e-Reader game.

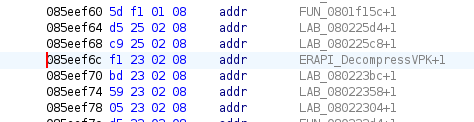

Pointers on the GBA are four bytes, since the GBA is a 32 bit system. So to move ahead in the table and find the function pointer for DecompressVPKorNonVPK, it is 0x85eebf8 + 4 * 0xdd, which is 0x85eef6c. Press 'g' and head there in Ghidra

Since the GBA is a little endian system, we need to form the bytes backwards to arrive at our pointer. Take f1 23 02 08 and reverse them -> 0x80223f1. That is the address of the DecompressVPKorNonVPK function.

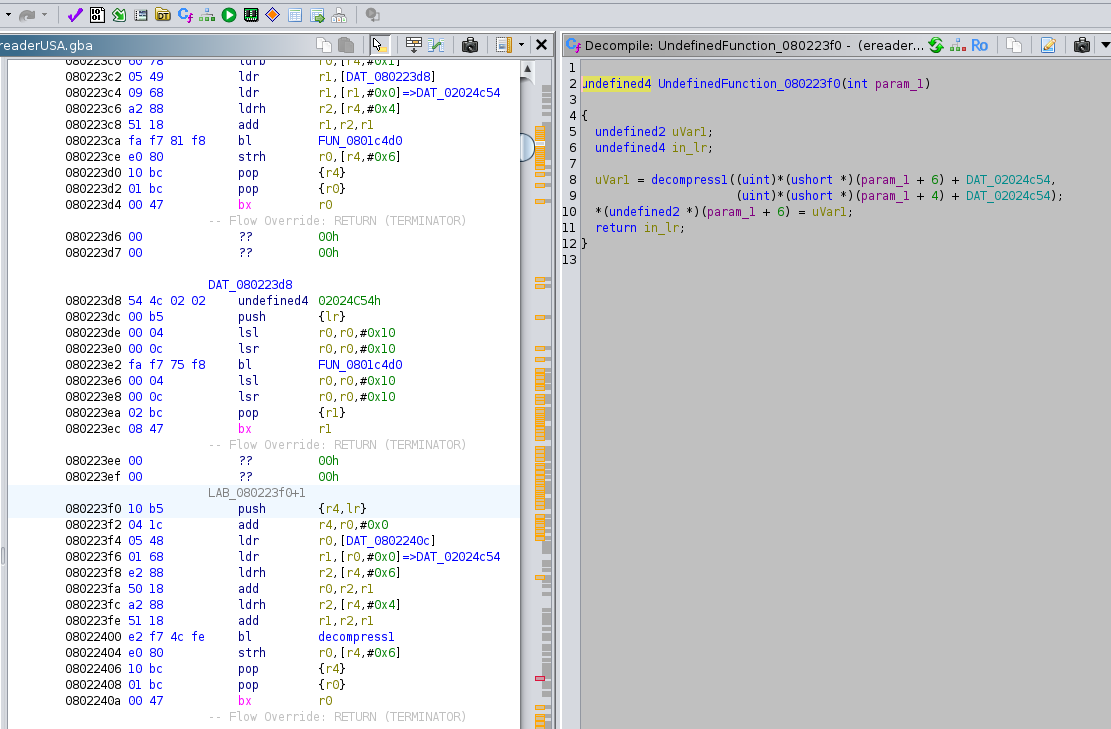

Head to 0x80223f0 with 'g'. When you get there, you can see that Ghidra kinda/sorta figured out this is a function.

I say kinda/sorta, because the function is read only. If you try to change anything in the function, Ghidra won't let you. You can change this by right clicking on 0x80223f0 in the main pane and selection "Create Function". Now that we have told Ghidra that this really is a function, it will let us edit it. Head to the source pane on the right and select "Rename Function", I named it "ERAPI_DecompressVPK".

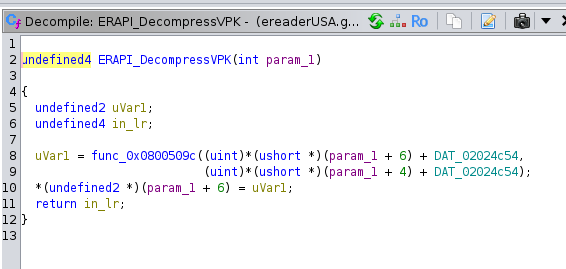

You can see this function is basically just calling another function.

Let's head to that other function. So far Ghidra is calling that function "func_0x800509c". In the decompilation, click on the function name to highlight it, then in the main disassembly pane in the middle, the line bl SUB_0800509c will be highlighted. Double click on that, and you will jump to the second function, and the decompilation will show on the right.

Again, Ghidra thinks this might be a function, but hasn't fully committed. Right click on the 800509c line in the center pane and choose "Create Function", then you can rename the function over in the disassembly. I called it "decompress1".

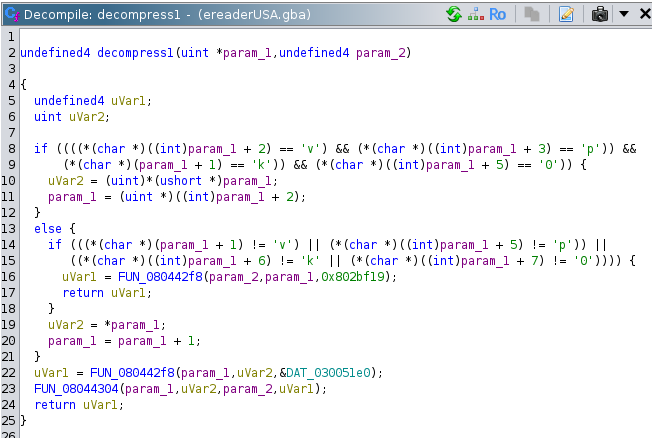

Here is some good stuff. By looking over this function we can see It takes two parameters. Ghidra thinks one is a pointer and doesn't know what the other one is.

In the first if statement, this function is examining the contents of the first parameter and looking for the string "vpk0". Heck yeah! If it's looking for VPK's magic string, that is a really strong sign this function is for decompression.

Also notice that it is looking for 'v' 2 bytes into the input? That proved to be very interesting and key to figuring this whole thing out. So the vpk buffer needs to be <byte> <byte> v p k 0 ... It turns out those two starting bytes are the size of the VPK payload.

Understanding how DecompressVPKOrNonVPK works

At this point, Ghidra has taught us enough to know how to use this function. It takes two parameters, the first one is a pointer, and the second one is ... probably a pointer too. That makes sense right? One points to the VPK payload, and the other points to a buffer where it will place the decompressed contents.

We know the first parameter points to the VPK payload, and it is important that it points two bytes in front of the "vpk0" string.

So from all of this, it's most likely DecompressVPKOrNonVPK(u8 *vpkSrc, u8 *destBuffer)

I wrote up a small test program that contained a little embedded test VPK. And indeed, I was able to decompress it.

And for z80

I did all of this exploring and testing using the ARM side of the E-Reader. In other words my little test programs were all written in C and compiled pretty much just like how you'd compile a normal GBA cartridge.

For z80 apps, the ID is still 0xdd, and the parameters become 16 bit registers. de for the output buffer, and hl for the input vpk.

Why was this so hard?

At the end of the day, I should have been able to do this without Ghidra, right? This function in hindsite is very obvious. And that is true. What tripped me up were those two starting bytes that indicate the VPK's size. When you make a VPK using nevpk, the first four bytes are "vpk0". So I figured that is where I needed to set the pointer. It took Ghidra for me to realize the pointer needs to start 2 bytes in front of that, and then I realized the function needs two starting bytes that tell it how big the VPK payload is.

Oh, what is "NonVPK"?

What is the "non VPK" refering to in DecompressVPKOrNonVPK? I'm not sure. But if you look at decompress1, it has an else block that does some massaging and figuring things out if it doesn't find "vpk0", and still sends off for decompression. So I'm guessing that this function is also able to decompress some other type of compressed payload? Anyone know?

Conclusion

But regardless of whether I really needed Ghidra for this or not, it's good to get an idea of how ERAPI functions live in the ROM and how to poke at them using Ghidra. From here, figuring out even more of ERAPI using Ghidra should be possible.
